PureMVC::Model Class Reference

A Multiton IModel implementation. More...

#include <pmvcpp.h>

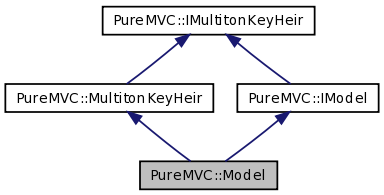

Inheritance diagram for PureMVC::Model:

[legend]

Collaboration diagram for PureMVC::Model:

[legend]

List of all members.

Public Member Functions
	Model ()
	Constructor.
void	registerProxy (IProxy *proxy)
	Register an IProxy with the Model.
IProxy *	retrieveProxy (std::string proxyName)
	Retrieve an IProxy from the Model.
bool	hasProxy (std::string proxyName)
	Check if a Proxy is registered.
IProxy *	removeProxy (std::string proxyName)
	Remove an IProxy from the Model.
virtual void	setMultitonKey (std::string key)
	Set multiton key.
virtual std::string	getMultitonKey ()
	Get multiton key.
Static Public Member Functions
static IModel *	getInstance (std::string key)
	Model Multiton Factory method.
static void	removeModel (std::string key)
	Remove an IModel instance.
Protected Attributes
std::map< std::string, IProxy * >	proxyMap

---

Detailed Description

A Multiton IModel implementation.

In PureMVC, the Model class provides access to model objects (Proxies) by named lookup.

The Model assumes these responsibilities:

• Maintain a cache of IProxy instances.
• Provide methods for registering, retrieving, and removing IProxy instances.

Your application must register IProxy instances with the Model. Typically, you use an ICommand to create and register IProxy instances once the Facade has initialized the Core actors.

See also:

Proxy::Proxy

IProxy::IProxy

---

Constructor & Destructor Documentation

Model::Model

(

)

Constructor.

This IModel implementation is a Multiton, so you should not call the constructor directly, but instead call the static Multiton Factory method Model.getInstance( multitonKey ) Unlike the AS3 version of PMVC, if you are going to subclass Model, you should stick your initialization code in your subclass constructor. Keep in mind though, that the MultitonKey for this instance does not get set until after the constructor is called from getInstance.

---

Member Function Documentation

IModel * Model::getInstance

(

std::string

key

)

[static]

Model Multiton Factory method.

Returns:

the instance for this Multiton key

std::string MultitonKeyHeir::getMultitonKey

(

)

[virtual, inherited]

Get multiton key.

Returns the multiton key.

Returns:

The string key name

Implements PureMVC::IMultitonKeyHeir.

bool Model::hasProxy

(

std::string

proxyName

)

[virtual]

Check if a Proxy is registered.

Parameters:

proxyName

Returns:

whether a Proxy is currently registered with the given proxyName.

Implements PureMVC::IModel.

void Model::registerProxy

(

IProxy *

proxy

)

[virtual]

Register an IProxy with the Model.

Parameters:

proxy

an IProxy to be held by the Model.

Implements PureMVC::IModel.

void Model::removeModel

(

std::string

key

)

[static]

Remove an IModel instance.

Parameters:

multitonKey

of IModel instance to remove

IProxy * Model::removeProxy

(

std::string

proxyName

)

[virtual]

Remove an IProxy from the Model.

Parameters:

proxyName

name of the IProxy instance to be removed.

Returns:

the IProxy that was removed from the Model

Implements PureMVC::IModel.

IProxy * Model::retrieveProxy

(

std::string

proxyName

)

[virtual]

Retrieve an IProxy from the Model.

Parameters:

proxyName

Returns:

the IProxy instance previously registered with the given proxyName.

Implements PureMVC::IModel.

void MultitonKeyHeir::setMultitonKey

(

std::string

key

)

[virtual, inherited]

Set multiton key.

Sets the multiton key.

Parameters:

key

The name of the key

Implements PureMVC::IMultitonKeyHeir.

---

The documentation for this class was generated from the following files:

• /Users/schell/Code/PureMVC-Plus-Plus/src/pmvcpp.h
• /Users/schell/Code/PureMVC-Plus-Plus/src/pmvcpp.cpp
