PureMVC::Facade Class Reference

A base Multiton IFacade implementation. More...

#include <pmvcpp.h>

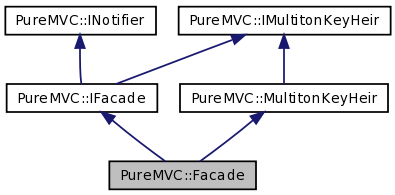

Inheritance diagram for PureMVC::Facade:

[legend]

Collaboration diagram for PureMVC::Facade:

[legend]

List of all members.

Public Member Functions
	Facade ()
	Constructor.
template<class T >
void	registerCommand (int notificationName)
	Register an `ICommand` with the `Controller` by Notification name.
void	removeCommand (int notificationName)
	Remove a previously registered `ICommand` to `INotification` mapping from the Controller.
bool	hasCommand (int notificationName)
	Check if a Command is registered for a given Notification.
void	registerProxy (IProxy *proxy)
	Register an `IProxy` with the `Model` by name.
IProxy *	retrieveProxy (std::string proxyName)
	Retrieve an `IProxy` from the `Model` by name.
IProxy *	removeProxy (std::string proxyName)
	Remove an `IProxy` from the `Model` by name.
bool	hasProxy (std::string proxyName)
	Check if a Proxy is registered.
void	registerMediator (IMediator *mediator)
	Register a `IMediator` with the `View`.
IMediator *	retrieveMediator (std::string mediatorName)
	Retrieve an `IMediator` from the `View`.
IMediator *	removeMediator (std::string mediatorName)
	Remove an `IMediator` from the `View`.
bool	hasMediator (std::string mediatorName)
	Check if a Mediator is registered or not.
void	sendNotification (int notificationName, void *body, int notificationType)
	Create and send an `INotification`.
void	sendNotification (int notificationName, void *body)
	Send a `INotification`.
void	sendNotification (int notificationName, int notificationType)
	Send a `INotification`.
void	sendNotification (int notificationName)
	Send a `INotification`.
void	notifyObservers (INotification *notification)
	Notify `Observer`s.
void	initializeNotifier (std::string key)
	Set the Multiton key for this facade instance.
virtual void	setMultitonKey (std::string key)=0
	Set multiton key.
virtual std::string	getMultitonKey ()=0
	Get multiton key.
virtual void	setMultitonKey (std::string key)
	Set multiton key.
virtual std::string	getMultitonKey ()
	Get multiton key.
Static Public Member Functions
static Facade *	getInstance (std::string)
	`Facade` multiton factory method.
static bool	hasCore (std::string key)
	Check if a Core is registered or not.
static void	removeCore (std::string key)
	Remove a Core.
Protected Member Functions
void	initializeFacade ()
	Initialize the Multiton `Facade` instance.
void	initializeController ()
	Initialize the `Controller`.
void	initializeModel ()
	Initialize the `Model`.
void	initializeView ()
	Initialize the `View`.
Protected Attributes
IController *	controller
IModel *	model
IView *	view

Detailed Description

A base Multiton IFacade implementation.

See also:: Model; View; Controller

Constructor & Destructor Documentation

Facade::Facade ( )

Constructor.

This IFacade implementation is a Multiton, so you should not call the constructor directly, but instead call the static Factory method, passing the unique key for this instance Facade.getInstance( multitonKey )

Exceptions:

Error

Error if instance for this Multiton key has already been constructed

Member Function Documentation

Facade * Facade::getInstance ( std::string key ) [static]

Facade multiton factory method.

Returns:: the Multiton instance of the Facade

std::string MultitonKeyHeir::getMultitonKey ( ) [virtual, inherited]

Get multiton key.

Returns the multiton key.

Returns:: The string key name

Implements PureMVC::IMultitonKeyHeir.

virtual std::string PureMVC::IMultitonKeyHeir::getMultitonKey ( ) [pure virtual, inherited]

Get multiton key.

Returns the multiton key.

Returns:: The string key name

Implemented in PureMVC::MultitonKeyHeir.

bool Facade::hasCommand ( int notificationName ) [virtual]

Check if a Command is registered for a given Notification.

Parameters:

notificationName

Returns:: whether a Command is currently registered for the given notificationName.

Implements PureMVC::IFacade.

bool Facade::hasCore ( std::string key ) [static]

Check if a Core is registered or not.

Parameters:

key

the multiton key for the Core in question

Returns:: whether a Core is registered with the given key.

bool Facade::hasMediator ( std::string mediatorName ) [virtual]

Check if a Mediator is registered or not.

Parameters:

mediatorName

Returns:: whether a Mediator is registered with the given mediatorName.

Implements PureMVC::IFacade.

bool Facade::hasProxy ( std::string proxyName ) [virtual]

Check if a Proxy is registered.

Parameters:

proxyName

Returns:: whether a Proxy is currently registered with the given proxyName.

Implements PureMVC::IFacade.

void Facade::initializeController ( ) [protected]

Initialize the Controller.

Called by the initializeFacade method. Override this method in your subclass of Facade if one or both of the following are true:

You wish to initialize a different IController.
You have Commands to register with the Controller at startup..

If you don't want to initialize a different IController, call super.initializeController() at the beginning of your method, then register Commands.

void Facade::initializeFacade ( ) [protected]

Initialize the Multiton Facade instance.

Called automatically by getInstance.

void Facade::initializeModel ( ) [protected]

Initialize the Model.

Called by the initializeFacade method. Override this method in your subclass of Facade if one or both of the following are true:

You wish to initialize a different IModel.
You have Proxys to register with the Model that do not retrieve a reference to the Facade at construction time.

If you don't want to initialize a different IModel, call super.initializeModel() at the beginning of your method, then register Proxys.

Note: This method is rarely overridden; in practice you are more likely to use a Command to create and register Proxys with the Model, since Proxys with mutable data will likely need to send INotifications and thus will likely want to fetch a reference to the Facade during their construction.

void Facade::initializeNotifier ( std::string key ) [virtual]

Set the Multiton key for this facade instance.

Not called directly, but instead when getInstance is invoked. It is necessary to be public in order to implement INotifier.

Implements PureMVC::INotifier.

void Facade::initializeView ( ) [protected]

Initialize the View.

Called by the initializeFacade method. Override this method in your subclass of Facade if one or both of the following are true:

You wish to initialize a different IView.
You have Observers to register with the View

If you don't want to initialize a different IView, call super.initializeView() at the beginning of your method, then register IMediator instances.

Note: This method is rarely overridden; in practice you are more likely to use a Command to create and register Mediators with the View, since IMediator instances will need to send INotifications and thus will likely want to fetch a reference to the Facade during their construction.

void Facade::notifyObservers ( INotification * notification ) [virtual]

Notify Observers.

This method is left public mostly for backward compatibility, and to allow you to send custom notification classes using the facade.

Usually you should just call sendNotification and pass the parameters, never having to construct the notification yourself.

Parameters:

notification the INotification to have the View notify Observers of.

Implements PureMVC::IFacade.

template<class T >

void PureMVC::Facade::registerCommand ( int notificationName ) [inline]

Register an ICommand with the Controller by Notification name.

commandClassRef a reference to the Class of the ICommand

Parameters:

notificationName the name of the INotification to associate the ICommand with

void Facade::registerMediator ( IMediator * mediator ) [virtual]

Register a IMediator with the View.

Parameters:

	mediatorName	the name to associate with this `IMediator`
	mediator	a reference to the `IMediator`

Implements PureMVC::IFacade.

void Facade::registerProxy ( IProxy * proxy ) [virtual]

Register an IProxy with the Model by name.

Parameters:

	proxyName	the name of the `IProxy`.
	proxy	the `IProxy` instance to be registered with the `Model`.

Implements PureMVC::IFacade.

void Facade::removeCommand ( int notificationName ) [virtual]

Remove a previously registered ICommand to INotification mapping from the Controller.

Parameters:

notificationName the name of the INotification to remove the ICommand mapping for

Implements PureMVC::IFacade.

void Facade::removeCore ( std::string key ) [static]

Remove a Core.

Remove the Model, View, Controller and Facade instances for the given key.

Parameters:

multitonKey

of the Core to remove

IMediator * Facade::removeMediator ( std::string mediatorName ) [virtual]

Remove an IMediator from the View.

Parameters:

mediatorName name of the IMediator to be removed.

Returns:: the IMediator that was removed from the View

Implements PureMVC::IFacade.

IProxy * Facade::removeProxy ( std::string proxyName ) [virtual]

Remove an IProxy from the Model by name.

Parameters:

proxyName the IProxy to remove from the Model.

Returns:: the IProxy that was removed from the Model

Implements PureMVC::IFacade.

IMediator * Facade::retrieveMediator ( std::string mediatorName ) [virtual]

Retrieve an IMediator from the View.

Parameters:

mediatorName

Returns:: the IMediator previously registered with the given mediatorName.

Implements PureMVC::IFacade.

IProxy * Facade::retrieveProxy ( std::string proxyName ) [virtual]

Retrieve an IProxy from the Model by name.

Parameters:

proxyName

the name of the proxy to be retrieved.

Returns:: the IProxy instance previously registered with the given proxyName.

Implements PureMVC::IFacade.

void Facade::sendNotification ( int notificationName ) [virtual]

Send a INotification.

Convenience method to prevent having to construct new notification instances in our implementation code.

Parameters:

notificationName

the name of the notification to send

Implements PureMVC::INotifier.

void Facade::sendNotification	(	int	notificationName,
		int	notificationType
	)			`[virtual]`

Send a INotification.

Convenience method to prevent having to construct new notification instances in our implementation code.

Parameters:

	notificationName	the name of the notification to send
	type	the type of the notification (optional)

Implements PureMVC::INotifier.

void Facade::sendNotification	(	int	notificationName,
		void *	body
	)			`[virtual]`

Send a INotification.

Convenience method to prevent having to construct new notification instances in our implementation code.

Parameters:

	notificationName	the name of the notification to send
	body	the body of the notification (optional)

Implements PureMVC::INotifier.

void Facade::sendNotification	(	int	notificationName,
		void *	body,
		int	notificationType
	)			`[virtual]`

Create and send an INotification.

Keeps us from having to construct new notification instances in our implementation code.

Parameters:

	notificationName	the name of the notiification to send
	body	the body of the notification (optional)
	type	the type of the notification (optional)

Implements PureMVC::INotifier.

void MultitonKeyHeir::setMultitonKey ( std::string key ) [virtual, inherited]

Set multiton key.

Sets the multiton key.

Parameters:

key

The name of the key

Implements PureMVC::IMultitonKeyHeir.

virtual void PureMVC::IMultitonKeyHeir::setMultitonKey ( std::string key ) [pure virtual, inherited]

Set multiton key.

Sets the multiton key.

Parameters:

key

The name of the key

Implemented in PureMVC::MultitonKeyHeir.

The documentation for this class was generated from the following files:

/Users/schell/Code/PureMVC-Plus-Plus/src/pmvcpp.h
/Users/schell/Code/PureMVC-Plus-Plus/src/pmvcpp.cpp
