PureMVC::View Class Reference

A Multiton IView implementation. More...

#include <pmvcpp.h>

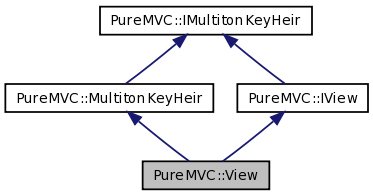

Inheritance diagram for PureMVC::View:

[legend]

Collaboration diagram for PureMVC::View:

[legend]

List of all members.

Public Member Functions
	View ()
	Constructor.
void	registerObserver (int notificationName, IObserverRestricted *observer)
	Register an IObserverRestricted to be notified of INotifications with a given name.
void	notifyObservers (INotification *notification)
	Notify the IObservers for a particular INotification.
void	removeObserver (int notificationName, intptr_t contextAddress)
	Remove the observer for a given notifyContext from an observer list for a given Notification name.
void	registerMediator (IMediator *mediator)
	Register an IMediator instance with the View.
IMediator *	retrieveMediator (std::string mediatorName)
	Retrieve an IMediator from the View.
IMediator *	removeMediator (std::string mediatorName)
	Remove an IMediator from the View.
bool	hasMediator (std::string mediatorName)
	Check if a Mediator is registered or not.
virtual void	setMultitonKey (std::string key)
	Set multiton key.
virtual std::string	getMultitonKey ()
	Get multiton key.
Static Public Member Functions
static IView *	getInstance (std::string key)
	View Singleton Factory method.
static void	removeView (std::string key)
	Remove an IView instance.
Protected Attributes
std::map< std::string, IMediator * >	mediatorMap
std::map< int, std::vector < IObserverRestricted * > >	observerMap

---

Detailed Description

A Multiton IView implementation.

In PureMVC, the View class assumes these responsibilities:

• Maintain a cache of IMediator instances.
• Provide methods for registering, retrieving, and removing IMediators.
• Notifiying IMediators when they are registered or removed.
• Managing the observer lists for each INotification in the application.
• Providing a method for attaching IObservers to an INotification's observer list.
• Providing a method for broadcasting an INotification.
• Notifying the IObservers of a given INotification when it broadcast.

See also:

Mediator

Observer

Notification

---

Constructor & Destructor Documentation

View::View

(

)

Constructor.

This IView implementation is a Multiton, so you should not call the constructor directly, but instead call the static Multiton Factory method View.getInstance( multitonKey ). Unlike the AS3 version of PMVC, if you are going to subclass View, you should stick your initialization code in your subclass constructor. Keep in mind though, that the MultitonKey for this instance does not get set until after the constructor is called from getInstance.

---

Member Function Documentation

IView * View::getInstance

(

std::string

key

)

[static]

View Singleton Factory method.

Returns:

the Singleton instance of View

std::string MultitonKeyHeir::getMultitonKey

(

)

[virtual, inherited]

Get multiton key.

Returns the multiton key.

Returns:

The string key name

Implements PureMVC::IMultitonKeyHeir.

bool View::hasMediator

(

std::string

mediatorName

)

[virtual]

Check if a Mediator is registered or not.

Parameters:

mediatorName

Returns:

whether a Mediator is registered with the given mediatorName.

Implements PureMVC::IView.

void View::notifyObservers

(

INotification *

notification

)

[virtual]

Notify the IObservers for a particular INotification.

All previously attached IObservers for this INotification's list are notified and are passed a reference to the INotification in the order in which they were registered.

Parameters:

notification

the INotification to notify IObservers of.

Implements PureMVC::IView.

void View::registerMediator

(

IMediator *

mediator

)

[virtual]

Register an IMediator instance with the View.

Registers the IMediator so that it can be retrieved by name, and further interrogates the IMediator for its INotification interests.

If the IMediator returns any INotification names to be notified about, an Observer is created encapsulating the IMediator instance's handleNotification method and registering it as an Observer for all INotifications the IMediator is interested in.

Parameters:

	mediatorName	the name to associate with this IMediator instance
	mediator	a reference to the IMediator instance

Implements PureMVC::IView.

void View::registerObserver	(	int	notificationName,
		IObserverRestricted *	observer
	)			[virtual]

Register an IObserverRestricted to be notified of INotifications with a given name.

Parameters:

	notificationName	the name of the INotifications to notify this IObserver of
	observer	the IObserverRestricted to register

Implements PureMVC::IView.

IMediator * View::removeMediator

(

std::string

mediatorName

)

[virtual]

Remove an IMediator from the View.

Parameters:

mediatorName

name of the IMediator instance to be removed.

Returns:

the IMediator that was removed from the View Remove an IMediator from the View.

Parameters:

mediatorName

name of the IMediator instance to be removed.

Returns:

the IMediator that was removed from the View

Implements PureMVC::IView.

void View::removeObserver	(	int	notificationName,
		intptr_t	contextAddress
	)			[virtual]

Remove the observer for a given notifyContext from an observer list for a given Notification name.

Parameters:

	notificationName	which observer list to remove from
	contextAddress	remove the observer with this memory address as its notifyContext's address

Implements PureMVC::IView.

void View::removeView

(

std::string

key

)

[static]

Remove an IView instance.

Parameters:

multitonKey

of IView instance to remove

IMediator * View::retrieveMediator

(

std::string

mediatorName

)

[virtual]

Retrieve an IMediator from the View.

Parameters:

mediatorName

the name of the IMediator instance to retrieve.

Returns:

the IMediator instance previously registered with the given mediatorName.

Implements PureMVC::IView.

void MultitonKeyHeir::setMultitonKey

(

std::string

key

)

[virtual, inherited]

Set multiton key.

Sets the multiton key.

Parameters:

key

The name of the key

Implements PureMVC::IMultitonKeyHeir.

---

The documentation for this class was generated from the following files:

• /Users/schell/Code/PureMVC-Plus-Plus/src/pmvcpp.h
• /Users/schell/Code/PureMVC-Plus-Plus/src/pmvcpp.cpp
