PureMVC::Mediator Class Reference

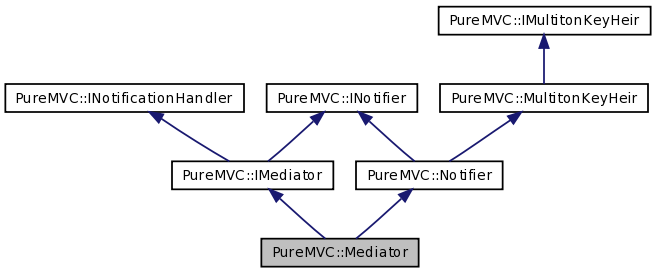

Inheritance diagram for PureMVC::Mediator:

[legend]

Collaboration diagram for PureMVC::Mediator:

[legend]

List of all members.

Public Member Functions
	Mediator (std::string mediatorName, void *viewComponent)
	Constructor.
	Mediator (std::string mediatorName)
	Mediator (void *viewComponent)
std::string	getMediatorName ()
	Get the name of the Mediator.
void	setViewComponent (void *viewComponent)
	Set the IMediator's view component.
void *	getViewComponent ()
	Get the Mediator's view component.
virtual std::vector< int >	listNotificationInterests ()=0
	List the INotification names this Mediator is interested in being notified of.
virtual void	handleNotification (INotification *notification)=0
	Handle INotifications.
virtual void	onRegister ()=0
	Called by the View when the Mediator is registered.
virtual void	onRemove ()=0
	Called by the View when the Mediator is removed.
std::string	getName ()
	Returns the name of the Mediator.
virtual void	sendNotification (int notificationName, void *body, int notificationType)=0
	Send a INotification.
virtual void	sendNotification (int notificationName, int notificationType)=0
	Send a INotification.
virtual void	sendNotification (int notificationName, void *body)=0
	Send a INotification.
virtual void	sendNotification (int notificationName)=0
	Send a INotification.
virtual void	initializeNotifier (std::string key)=0
	Initialize this INotifier instance.
void	sendNotification (int notificationName, void *body, int notificationType)
	Create and send an INotification.
void	sendNotification (int notificationName, int notificationType)
	Send a INotification.
void	sendNotification (int notificationName, void *body)
	Send a INotification.
void	sendNotification (int notificationName)
	Send a INotification.
void	initializeNotifier (std::string key)
	Initialize this INotifier instance.
virtual void	setMultitonKey (std::string key)
	Set multiton key.
virtual std::string	getMultitonKey ()
	Get multiton key.
Protected Member Functions
IFacade *	getFacade ()
Protected Attributes
std::string	mediatorName
void *	viewComponent

---

Constructor & Destructor Documentation

PureMVC::Mediator::Mediator	(	std::string	mediatorName,
		void *	viewComponent
	)			[inline]

Constructor.

---

Member Function Documentation

std::string PureMVC::Mediator::getMediatorName

(

)

[inline, virtual]

Get the name of the Mediator.

Returns:

the Mediator name

Implements PureMVC::IMediator.

std::string MultitonKeyHeir::getMultitonKey

(

)

[virtual, inherited]

Get multiton key.

Returns the multiton key.

Returns:

The string key name

Implements PureMVC::IMultitonKeyHeir.

std::string PureMVC::Mediator::getName

(

)

[inline]

Returns the name of the Mediator.

Returns:

string the name

void* PureMVC::Mediator::getViewComponent

(

)

[inline, virtual]

Get the Mediator's view component.

Additionally, an implicit getter will usually be defined in the subclass that casts the view object to a type, like this:

<listing> private function get comboBox : mx.controls.ComboBox { return viewComponent as mx.controls.ComboBox; } </listing>

Returns:

the view component

Implements PureMVC::IMediator.

virtual void PureMVC::Mediator::handleNotification

(

INotification *

notification

)

[pure virtual]

Handle INotifications.

Typically this will be handled in a switch statement, with one 'case' entry per INotification the Mediator is interested in.

Implements PureMVC::INotificationHandler.

void Notifier::initializeNotifier

(

std::string

key

)

[virtual, inherited]

Initialize this INotifier instance.

This is how a Notifier gets its multitonKey. Calls to sendNotification or to access the facade will fail until after this method has been called.

Mediators, Commands or Proxies may override this method in order to send notifications or access the Multiton Facade instance as soon as possible. They CANNOT access the facade in their constructors, since this method will not yet have been called.

Parameters:

key

the multitonKey for this INotifier to use

Implements PureMVC::INotifier.

virtual void PureMVC::INotifier::initializeNotifier

(

std::string

key

)

[pure virtual, inherited]

Initialize this INotifier instance.

This is how a Notifier gets its multitonKey. Calls to sendNotification or to access the facade will fail until after this method has been called.

Parameters:

key

the multitonKey for this INotifier to use

Implemented in PureMVC::Notifier, and PureMVC::Facade.

virtual std::vector<int> PureMVC::Mediator::listNotificationInterests

(

)

[pure virtual]

List the INotification names this Mediator is interested in being notified of.

Returns:

Array the list of INotification names

Implements PureMVC::IMediator.

virtual void PureMVC::Mediator::onRegister

(

)

[pure virtual]

Called by the View when the Mediator is registered.

Implements PureMVC::IMediator.

virtual void PureMVC::Mediator::onRemove

(

)

[pure virtual]

Called by the View when the Mediator is removed.

Implements PureMVC::IMediator.

void Notifier::sendNotification

(

int

notificationName

)

[virtual, inherited]

Send a INotification.

Convenience method to prevent having to construct new notification instances in our implementation code.

Parameters:

notificationName

the name of the notification to send

Implements PureMVC::INotifier.

void Notifier::sendNotification	(	int	notificationName,
		void *	body
	)			[virtual, inherited]

Send a INotification.

Convenience method to prevent having to construct new notification instances in our implementation code.

Parameters:

	notificationName	the name of the notification to send
	body	the body of the notification (optional)

Implements PureMVC::INotifier.

void Notifier::sendNotification	(	int	notificationName,
		int	notificationType
	)			[virtual, inherited]

Send a INotification.

Convenience method to prevent having to construct new notification instances in our implementation code.

Parameters:

	notificationName	the name of the notification to send
	type	the type of the notification (optional)

Implements PureMVC::INotifier.

void Notifier::sendNotification	(	int	notificationName,
		void *	body,
		int	notificationType
	)			[virtual, inherited]

Create and send an INotification.

Keeps us from having to construct new INotification instances in our implementation code.

Parameters:

	notificationName	the name of the notiification to send
	body	the body of the notification (optional)
	type	the type of the notification (optional)

Implements PureMVC::INotifier.

virtual void PureMVC::INotifier::sendNotification

(

int

notificationName

)

[pure virtual, inherited]

Send a INotification.

Convenience method to prevent having to construct new notification instances in our implementation code.

Parameters:

notificationName

the name of the notification to send

Implemented in PureMVC::Notifier, and PureMVC::Facade.

virtual void PureMVC::INotifier::sendNotification	(	int	notificationName,
		void *	body
	)			[pure virtual, inherited]

Send a INotification.

Convenience method to prevent having to construct new notification instances in our implementation code.

Parameters:

	notificationName	the name of the notification to send
	body	the body of the notification (optional)

Implemented in PureMVC::Notifier, and PureMVC::Facade.

virtual void PureMVC::INotifier::sendNotification	(	int	notificationName,
		int	notificationType
	)			[pure virtual, inherited]

Send a INotification.

Convenience method to prevent having to construct new notification instances in our implementation code.

Parameters:

	notificationName	the name of the notification to send
	type	the type of the notification (optional)

Implemented in PureMVC::Notifier, and PureMVC::Facade.

virtual void PureMVC::INotifier::sendNotification	(	int	notificationName,
		void *	body,
		int	notificationType
	)			[pure virtual, inherited]

Send a INotification.

Convenience method to prevent having to construct new notification instances in our implementation code.

Parameters:

	notificationName	the name of the notification to send
	body	the body of the notification (optional)
	type	the type of the notification (optional)

Implemented in PureMVC::Notifier, and PureMVC::Facade.

void MultitonKeyHeir::setMultitonKey

(

std::string

key

)

[virtual, inherited]

Set multiton key.

Sets the multiton key.

Parameters:

key

The name of the key

Implements PureMVC::IMultitonKeyHeir.

void PureMVC::Mediator::setViewComponent

(

void *

viewComponent

)

[inline, virtual]

Set the IMediator's view component.

Parameters:

Object

the view component

Implements PureMVC::IMediator.

---

The documentation for this class was generated from the following file:

• /Users/schell/Code/PureMVC-Plus-Plus/src/pmvcpp.h
