PureMVC::MacroCommand Class Reference

A base ICommand implementation that executes other ICommands. More...

#include <pmvcpp.h>

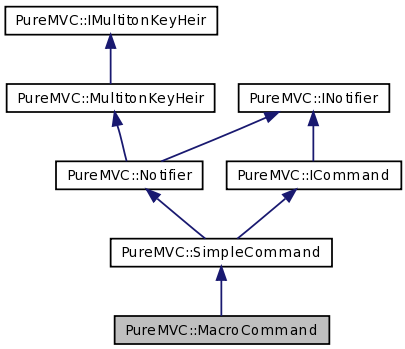

Inheritance diagram for PureMVC::MacroCommand:

[legend]

Collaboration diagram for PureMVC::MacroCommand:

[legend]

List of all members.

Public Member Functions
	MacroCommand ()
	Constructor.
void	execute (INotification *notification)
	Execute this MacroCommand's SubCommands.
void	sendNotification (int notificationName, void *body, int notificationType)
	Create and send an INotification.
void	sendNotification (int notificationName, int notificationType)
	Send a INotification.
void	sendNotification (int notificationName, void *body)
	Send a INotification.
void	sendNotification (int notificationName)
	Send a INotification.
void	initializeNotifier (std::string key)
	Initialize this INotifier instance.
virtual void	setMultitonKey (std::string key)
	Set multiton key.
virtual std::string	getMultitonKey ()
	Get multiton key.
Protected Member Functions
void	addSubCommand (ICommand *command)
	Initialize the MacroCommand.
IFacade *	getFacade ()
Protected Attributes
std::vector< ICommand * >	subCommands
	Subcommands.

---

Detailed Description

A base ICommand implementation that executes other ICommands.

A MacroCommand maintains an list of ICommand Class references called SubCommands.

When execute is called, the MacroCommand instantiates and calls execute on each of its SubCommands turn. Each SubCommand will be passed a reference to the original INotification that was passed to the MacroCommand's execute method.

Unlike SimpleCommand, your subclass should not override execute, but instead, should override the initializeMacroCommand method, calling addSubCommand once for each SubCommand to be executed.

See also:

Controller

Notification

SimpleCommand

---

Constructor & Destructor Documentation

MacroCommand::MacroCommand

(

)

Constructor.

You need to define a constructor, and add all your subcommands within it.

In your subclass, define a constuctor to initialize the MacroCommand's SubCommand list with ICommand class references like this:

<listing> // Initialize MyMacroCommand MacroCommandSubclass::MacroCommandSubclass( ) { this->addSubCommand( new FirstCommand() ); this->addSubCommand( new SecondCommand() ); this->addSubCommand( new ThirdCommand() ); } </listing>

Note that SubCommands may be any ICommand implementor, MacroCommands or SimpleCommands are both acceptable.

---

Member Function Documentation

void MacroCommand::addSubCommand

(

ICommand *

command

)

[protected]

Initialize the MacroCommand.

In your subclass, override this method to initialize the MacroCommand's SubCommand list with ICommand class references like this:

<listing> // Initialize MyMacroCommand override protected function initializeMacroCommand( ) : void { addSubCommand( com.me.myapp.controller.FirstCommand ); addSubCommand( com.me.myapp.controller.SecondCommand ); addSubCommand( com.me.myapp.controller.ThirdCommand ); } </listing>

Note that SubCommands may be any ICommand implementor, MacroCommands or SimpleCommands are both acceptable.

void MacroCommand::execute

(

INotification *

notification

)

[virtual]

Execute this MacroCommand's SubCommands.

The SubCommands will be called in First In/First Out (FIFO) order.

Parameters:

notification

the INotification object to be passsed to each SubCommand.

Implements PureMVC::SimpleCommand.

std::string MultitonKeyHeir::getMultitonKey

(

)

[virtual, inherited]

Get multiton key.

Returns the multiton key.

Returns:

The string key name

Implements PureMVC::IMultitonKeyHeir.

void Notifier::initializeNotifier

(

std::string

key

)

[virtual, inherited]

Initialize this INotifier instance.

This is how a Notifier gets its multitonKey. Calls to sendNotification or to access the facade will fail until after this method has been called.

Mediators, Commands or Proxies may override this method in order to send notifications or access the Multiton Facade instance as soon as possible. They CANNOT access the facade in their constructors, since this method will not yet have been called.

Parameters:

key

the multitonKey for this INotifier to use

Implements PureMVC::INotifier.

void Notifier::sendNotification

(

int

notificationName

)

[virtual, inherited]

Send a INotification.

Convenience method to prevent having to construct new notification instances in our implementation code.

Parameters:

notificationName

the name of the notification to send

Implements PureMVC::INotifier.

void Notifier::sendNotification	(	int	notificationName,
		void *	body
	)			[virtual, inherited]

Send a INotification.

Convenience method to prevent having to construct new notification instances in our implementation code.

Parameters:

	notificationName	the name of the notification to send
	body	the body of the notification (optional)

Implements PureMVC::INotifier.

void Notifier::sendNotification	(	int	notificationName,
		int	notificationType
	)			[virtual, inherited]

Send a INotification.

Convenience method to prevent having to construct new notification instances in our implementation code.

Parameters:

	notificationName	the name of the notification to send
	type	the type of the notification (optional)

Implements PureMVC::INotifier.

void Notifier::sendNotification	(	int	notificationName,
		void *	body,
		int	notificationType
	)			[virtual, inherited]

Create and send an INotification.

Keeps us from having to construct new INotification instances in our implementation code.

Parameters:

	notificationName	the name of the notiification to send
	body	the body of the notification (optional)
	type	the type of the notification (optional)

Implements PureMVC::INotifier.

void MultitonKeyHeir::setMultitonKey

(

std::string

key

)

[virtual, inherited]

Set multiton key.

Sets the multiton key.

Parameters:

key

The name of the key

Implements PureMVC::IMultitonKeyHeir.

---

Member Data Documentation

std::vector<ICommand*> PureMVC::MacroCommand::subCommands [protected]

Subcommands.

Holds all the subcommands.

---

The documentation for this class was generated from the following files:

• /Users/schell/Code/PureMVC-Plus-Plus/src/pmvcpp.h
• /Users/schell/Code/PureMVC-Plus-Plus/src/pmvcpp.cpp
