PureMVC::Notifier Class Reference

A Base INotifier implementation. More...

#include <pmvcpp.h>

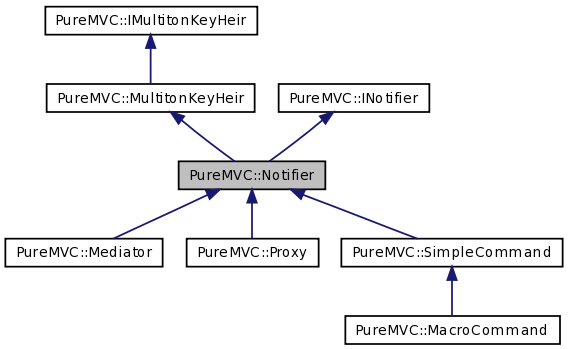

Inheritance diagram for PureMVC::Notifier:

[legend]

Collaboration diagram for PureMVC::Notifier:

[legend]

List of all members.

Public Member Functions
void	sendNotification (int notificationName, void *body, int notificationType)
	Create and send an INotification.
void	sendNotification (int notificationName, int notificationType)
	Send a INotification.
void	sendNotification (int notificationName, void *body)
	Send a INotification.
void	sendNotification (int notificationName)
	Send a INotification.
void	initializeNotifier (std::string key)
	Initialize this INotifier instance.
virtual void	setMultitonKey (std::string key)
	Set multiton key.
virtual std::string	getMultitonKey ()
	Get multiton key.
Protected Member Functions
IFacade *	getFacade ()

---

Detailed Description

A Base INotifier implementation.

MacroCommand, Command, Mediator and Proxy all have a need to send Notifications.

The INotifier interface provides a common method called sendNotification that relieves implementation code of the necessity to actually construct Notifications.

The Notifier class, which all of the above mentioned classes extend, provides an initialized reference to the Facade Multiton, which is required for the convienience method for sending Notifications, but also eases implementation as these classes have frequent Facade interactions and usually require access to the facade anyway.

NOTE: There is one caveat to notifiers, they cannot send notifications or reach the facade until they have a valid multitonKey.

The multitonKey is set: * on a Command when it is executed by the Controller * on a Mediator is registered with the View * on a Proxy is registered with the Model.

See also:

Proxy::Proxy

Facade::Facade

Mediator::Mediator

MacroCommand::MacroCommand

SimpleCommand::SimpleCommand

---

Member Function Documentation

std::string MultitonKeyHeir::getMultitonKey

(

)

[virtual, inherited]

Get multiton key.

Returns the multiton key.

Returns:

The string key name

Implements PureMVC::IMultitonKeyHeir.

void Notifier::initializeNotifier

(

std::string

key

)

[virtual]

Initialize this INotifier instance.

This is how a Notifier gets its multitonKey. Calls to sendNotification or to access the facade will fail until after this method has been called.

Mediators, Commands or Proxies may override this method in order to send notifications or access the Multiton Facade instance as soon as possible. They CANNOT access the facade in their constructors, since this method will not yet have been called.

Parameters:

key

the multitonKey for this INotifier to use

Implements PureMVC::INotifier.

void Notifier::sendNotification

(

int

notificationName

)

[virtual]

Send a INotification.

Convenience method to prevent having to construct new notification instances in our implementation code.

Parameters:

notificationName

the name of the notification to send

Implements PureMVC::INotifier.

void Notifier::sendNotification	(	int	notificationName,
		void *	body
	)			[virtual]

Send a INotification.

Convenience method to prevent having to construct new notification instances in our implementation code.

Parameters:

	notificationName	the name of the notification to send
	body	the body of the notification (optional)

Implements PureMVC::INotifier.

void Notifier::sendNotification	(	int	notificationName,
		int	notificationType
	)			[virtual]

Send a INotification.

Convenience method to prevent having to construct new notification instances in our implementation code.

Parameters:

	notificationName	the name of the notification to send
	type	the type of the notification (optional)

Implements PureMVC::INotifier.

void Notifier::sendNotification	(	int	notificationName,
		void *	body,
		int	notificationType
	)			[virtual]

Create and send an INotification.

Keeps us from having to construct new INotification instances in our implementation code.

Parameters:

	notificationName	the name of the notiification to send
	body	the body of the notification (optional)
	type	the type of the notification (optional)

Implements PureMVC::INotifier.

void MultitonKeyHeir::setMultitonKey

(

std::string

key

)

[virtual, inherited]

Set multiton key.

Sets the multiton key.

Parameters:

key

The name of the key

Implements PureMVC::IMultitonKeyHeir.

---

The documentation for this class was generated from the following files:

• /Users/schell/Code/PureMVC-Plus-Plus/src/pmvcpp.h
• /Users/schell/Code/PureMVC-Plus-Plus/src/pmvcpp.cpp
